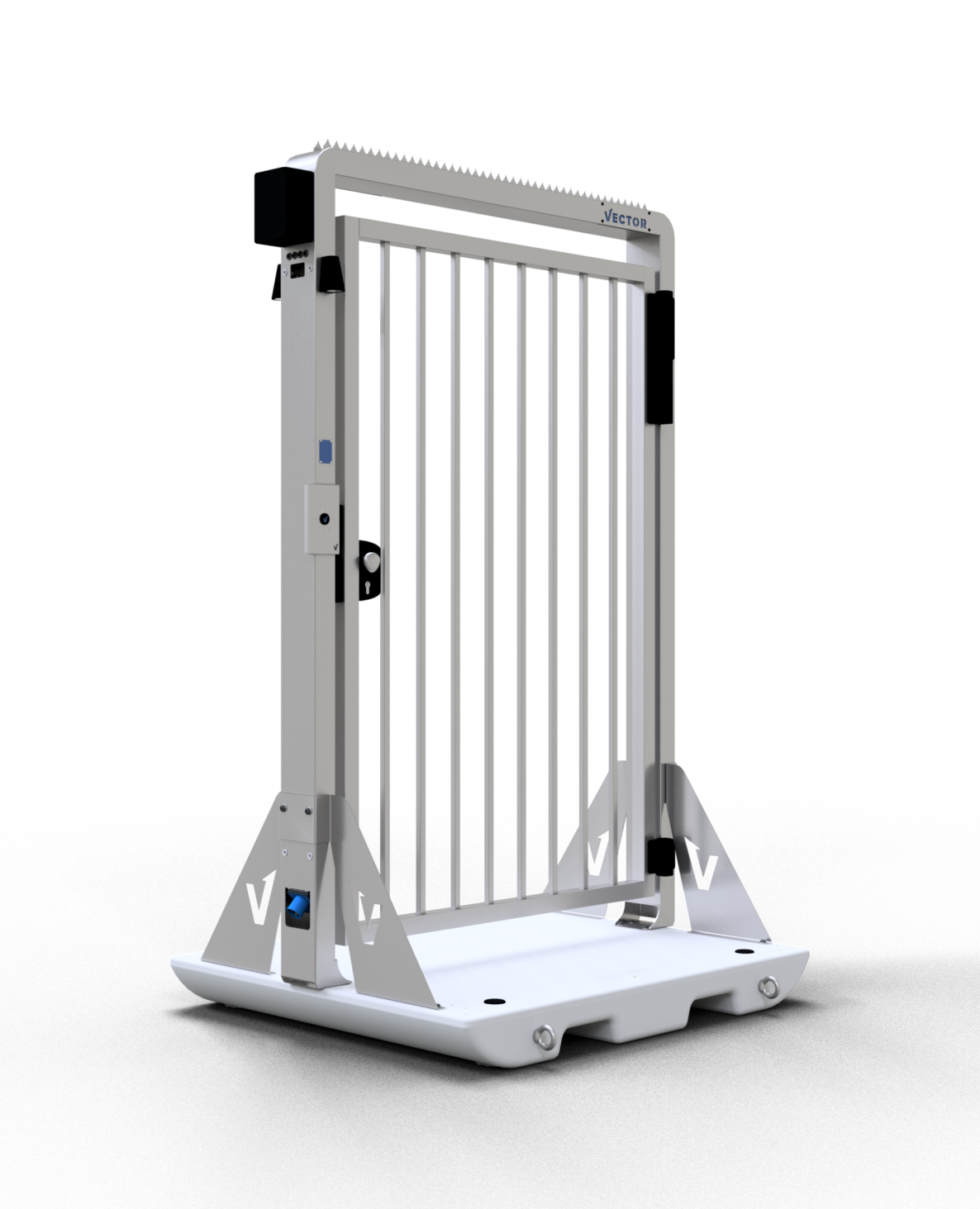

V-Door-Compact

V-Door-Compact – access with a system. For secure entry points with a modern standard

The V-Door-Compact is the ideal solution when functionality and mobility are equally important. As an electric door mounted on a robust concrete platform, it combines stability with flexibility – perfectly suited for temporary access points on construction sites, at events, or in secured areas. Its compact design allows for space-saving integration into existing installations, while the galvanized steel construction and sturdy knob ensure durable and secure operation. Whether used as part of an access control system, as a service entrance, or as a flexible access unit, the V-Door-Compact guarantees smooth processes and controlled security in any environment.

Highlights

  • Dimensions: 1.20 x 1.46 x 2.34 m
  • Weight: 625 kg
  • Passage width: 1.29 m
  • On mobile concrete platform with adjustable feet
  • Suitable for outdoor use
  • Door opener: electric
  • Locking system: knob
  • Hydraulic door closer
  • Connection of access controls possible
  • Flexible fence connection
  • Individual powder coating
2.34 m
1.20 m
1.46 m

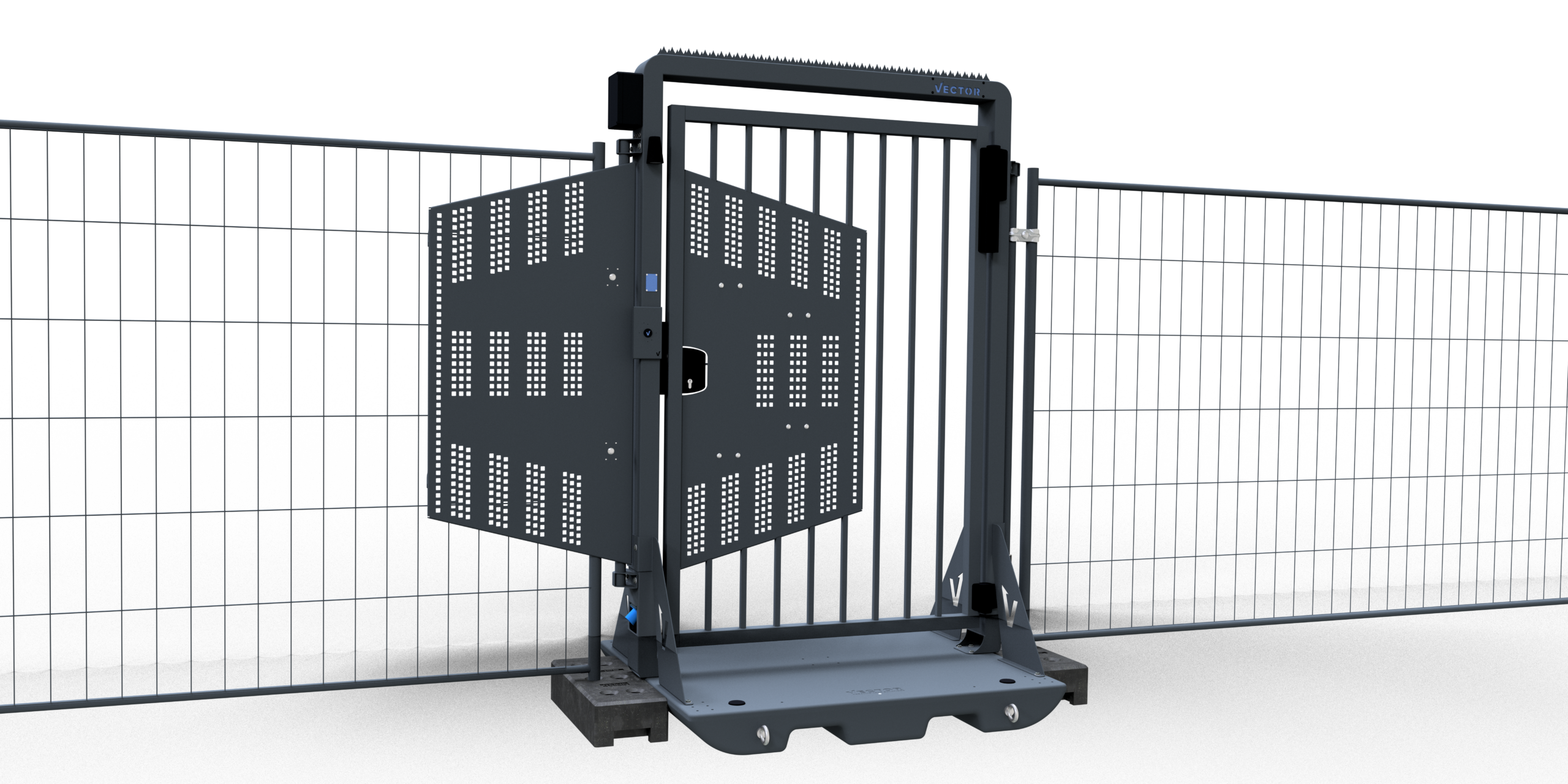

Tür kompakt
Climb-over protection

The anti-climb protection makes it
virtually impossible to climb over the doors

tamper guard

The external tamper guard must be
selected according to the required fence connection
to ensure that the
appropriate mounting points are available
