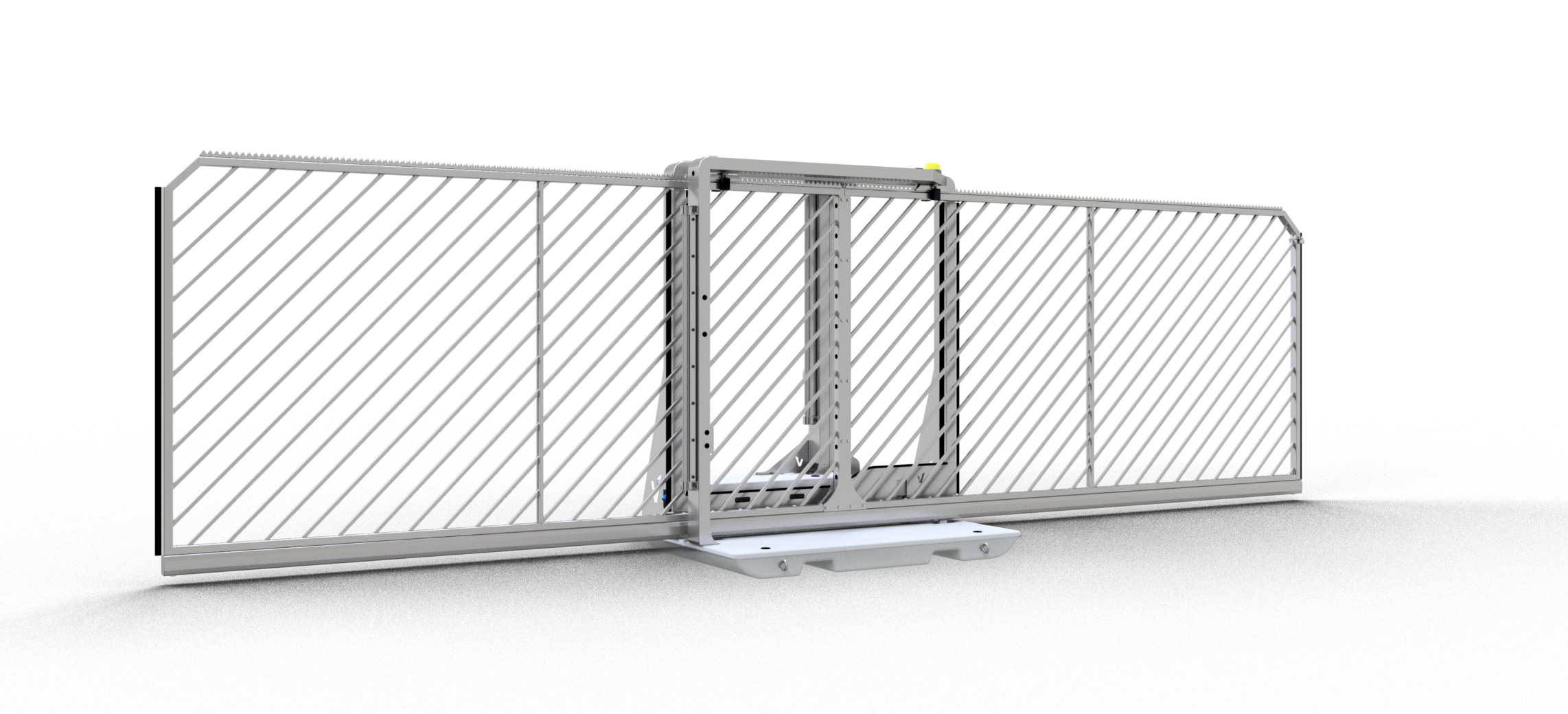

V-Gate-Simple-5.5
Simple, efficient, reliable: The V-Gate-Simple simplifies the world of mobile sliding gates
The V-Gate-Simple – the smart solution for straightforward access control on construction sites and at events. With its clean and simple design, this sliding gate is the ideal choice if you value user-friendliness and efficiency. Once installed, the V-Gate-Simple can be conveniently operated via remote control. Thanks to its versatility, it can be used both as a mobile and stationary solution and repositioned with ease. Despite its compact size, the V-Gate-Simple offers a generous opening width ranging from 3.6 m up to 5.5 m, ensuring smooth traffic flow. Equipped with practical features such as a printable aluminum composite panel, a CEE plug, a rack-and-pinion drive, an LED warning light, and a photocell, it meets all the requirements of modern access control. Experience the perfect combination of simplicity, performance, and reliability for your access control needs with the V-Gate-Simple.
Highlights
- Transport dimensions: 2.00 x 7.57 x 2.36 m
- Weight: 1898 kg
- Opening width: 5.5m
- On mobile concrete platform with adjustable feet
- Suitable for outdoor use
- Connection via 230 V CEE plug
- Module 4 rack and pinion drive
- Expandable control
- Light barrier
- LED rotating beacon
- Power cut-off
- Flexible folding mechanism
- Delivered with 2x hand-held transmitters
- Connection of access controls possible on both sides
- Flexible fence connection
- Individual powder coating
In very cold regions, integrated
heaters with thermostats
can
help ensure that the
electrical
components remain fully operational
at all times
We can equip our gates with
either photocells or laser
scanners, depending on the
requirements of the application.
